Path tracing gaming: what hardware you actually need in 2026

Path tracing has moved from headline feature into a real buying criterion. In 2026, three flagship titles ship with fully path traced modes that treat every light bounce as a simulated ray, and each one punishes a mid range GPU in ways traditional ray tracing never did. If you want Cyberpunk 2077 Overdrive, Alan Wake 2 with Full Ray Tracing, and Indiana Jones and the Great Circle at playable frame rates, the hardware bar is now genuinely high.

What path tracing actually costs you

Traditional ray tracing bolts a few effects onto a rasterised frame: reflections here, a shadow there, maybe some ambient occlusion. Path tracing throws the rasteriser out and simulates every ray of light bouncing through the scene. The result looks like offline CGI. The cost is that GPU workload roughly triples versus standard RT, and denoising becomes as important as raw ray throughput.

In practice, a card that used to sit at 90 fps with ray tracing on will drop to around 30 fps native under path tracing at 1440p. Upscaling and frame generation are no longer optional. They are load bearing parts of the pipeline.

Cyberpunk 2077 Overdrive: the benchmark that broke cards

CD Projekt Red's Overdrive preset remains the single most demanding consumer path tracing workload in 2026. At 1440p native with Overdrive enabled and no upscaling, expect the following honest numbers:

• RTX 4080 Super: 28 to 34 fps average
• RTX 5070 Ti: 36 to 42 fps average
• RTX 5080: 48 to 56 fps average
• RTX 5090: 78 to 92 fps average

Turn on DLSS 4 Quality with Multi Frame Generation and the RTX 5080 comfortably clears 120 fps at 1440p. That is the sweet spot in 2026, and it is why we treat the 5080 as the practical entry ticket into path traced gaming rather than a stretch goal.

Alan Wake 2: the denoiser test

Remedy's engine leans harder on denoising than any other current title. Alan Wake 2 with Full Ray Tracing enabled uses path tracing for both direct and indirect lighting, and the scenes are dense with fine geometry, foliage and volumetric fog. All three of these are worst case scenarios for a denoiser.

An RTX 5070 will produce a playable image at 1080p with DLSS Performance, but ghosting on rain and lantern light becomes distracting. Moving up to a 5080 with 16 GB of VRAM lets you run 1440p DLSS Quality with a clean image, sustained above 90 fps in the forest sections and above 70 fps in the town centre.

VRAM matters more than headline core counts on this title. Anything with less than 12 GB will hit texture streaming issues within an hour of play, and 16 GB is the honest recommendation for 1440p.

Indiana Jones and the Great Circle: the id Tech surprise

Machine Games' Path Traced preset, added in the 2025 update, uses id Tech 7's newer ray traversal path. It is the best optimised of the three titles by a clear margin. An RTX 5080 will run the Path Traced preset at 4K DLSS Quality at a locked 60 fps in most environments, and closer to 80 fps with Multi Frame Generation engaged.

The catch is the Vatican and Marrakech interior scenes, which push VRAM allocation to around 14 GB. Again, 16 GB is the floor.

See the current Birmingham AV high end path tracing build on eBay

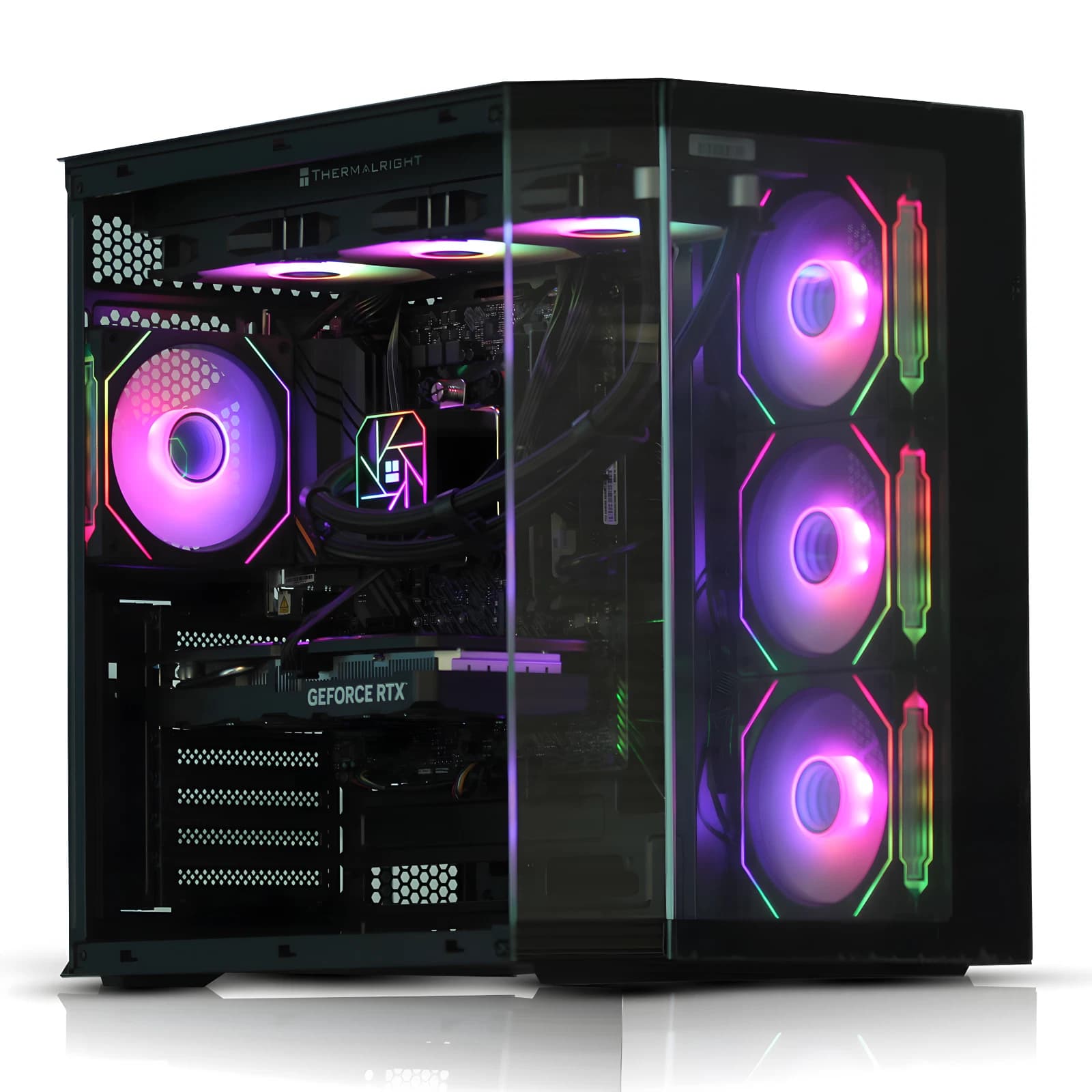

The BAV high end 2026 path tracing build

For customers asking what a defensible path tracing rig looks like in 2026, this is the shortlist that gets recommended most often across the workshop:

• GPU: RTX 5080 16 GB (minimum), RTX 5090 32 GB (ideal)
• CPU: Ryzen 7 9800X3D or Intel Core Ultra 7 265K
• RAM: 32 GB DDR5 6000 CL30
• Storage: 2 TB Gen4 NVMe (system) plus 4 TB Gen4 NVMe (games)
• PSU: 1000W 80 Plus Gold, ATX 3.1 with native 12V-2x6
• Cooling: 360 mm AIO, three intake fans, positive pressure
• Case: Fractal North XL, Lian Li O11 Vision or Corsair 6500X

Build cost through Birmingham AV sits between £2,650 and £3,900 depending on GPU tier, with a twelve month workshop warranty on every configuration. The refurbished route trims roughly 18 to 25 percent off equivalent new build pricing.

What to avoid in 2026

A short list of hardware choices that look tempting on paper but disappoint under path tracing:

• Any 8 GB card. The RTX 5060 8 GB variant cannot hold texture pools for these three titles at any resolution above 1080p.
• Older X3D chips paired with a 5090. The 5800X3D bottlenecks a 5090 by around 22 percent in Cyberpunk Overdrive at 1440p.
• Budget PSUs. Transient spikes on the 5080 and 5090 can exceed rated draw by 60 percent for milliseconds, and cheap units shut down.
• 1080p monitors. If you are spending 5080 money, run 1440p at minimum. The GPU has the headroom.

FAQ

Is an RTX 5070 Ti enough for path tracing?

It is enough for 1080p path tracing at high frame rates with DLSS 4 Quality, and it will handle 1440p in Indiana Jones and older RT titles well. It struggles to hold 60 fps at 1440p in Cyberpunk Overdrive and Alan Wake 2 Full RT without dropping to DLSS Performance, which affects image quality.

Do I really need DLSS 4 Multi Frame Generation?

For 1440p at 100 fps or above under path tracing, yes. Native path traced frame rates on even a 5080 sit in the 45 to 60 fps range in demanding titles. Multi Frame Generation is the difference between playable and pristine, and latency with Reflex 2 stays under 30 ms.

How much VRAM is the honest 2026 minimum?

16 GB for 1440p, 24 GB for 4K path tracing with texture packs enabled. Cards with 12 GB will run these games but hit stutter under sustained play in dense scenes. Buying 8 GB in 2026 for path tracing is a false economy.

Should I wait for RTX 60 series?

Nvidia has not confirmed a 2026 refresh timeline, and briefings point to late 2026 at the earliest. If you want these titles at their best this year, the 5080 is the correct card. Waiting for an uncertain uplift is rarely the winning move.
